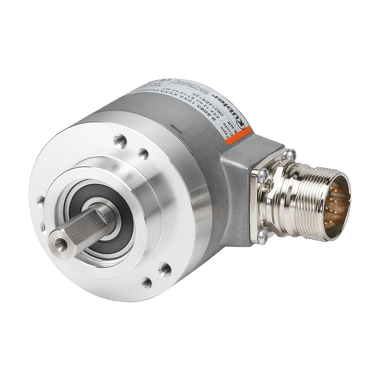

8.F5868.122A.2123 Sendix Absolut Multiturn CANOpen

Produktnummer: 8.f5868.122a.2123
Lagerbeholdning:

ekskl. mva.

Clamping flange, IPI 65 58mm, 10x20mm Shaft, Radial kabel 2m, 16bit MT + 16bit ST

Clamping flange, IPI 65 58mm, 10x20mm Shaft, Radial kabel 2m, 16bit MT + 16bit ST

Encoders Absolute multiturn

Sendix F5868

  • High precision
  • Resistant
  • Without gear with 100% magnetic insensitivity
  • Dimension Ø 58 mm
  • 16 bits singleturn
  • 16 bits multiturn
  • Max 10 mm shaft, with flat surface
  • Max 3/8" shaft, with flat surface



Intelligent Scan Technology™ – electronic field bus encoders.

The absolute encoders Multiturn Sendix F5868 / F5888 with CANopen interface and patented Intelligent Scan Technology™ are particularly high-resolution optical encoders without gears with 100% magnetic insensitivity. 32 bit total resolution, through hollow shaft up to 15 mm and CANopen functionalities according to current encoder profile.


Oprinnelses land Tyskland
HS kode 90314990
Vekt 400.0 g
