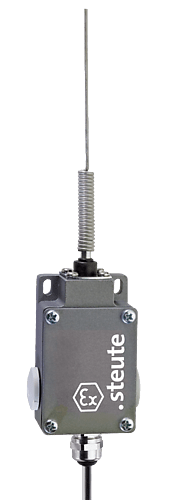

EXM 61 TL - 3M

Ex position switch

Material number: 1167449
(Material number old: 61732301)

• Ex zone 1 and 21
• Metal enclosure
• With pre-wired cable
• Actuator: Long spring rod TL
• Spring rod can be actuated from any direction
• Spring rod can be shortened 30 mm in actuating area
• Exact linear actuation not necessary
• Elasticity of the spring allows for deflection above the max. switching angle
• Attention: Please state required international approvals with your order!

Contact diagram

Switching diagram
