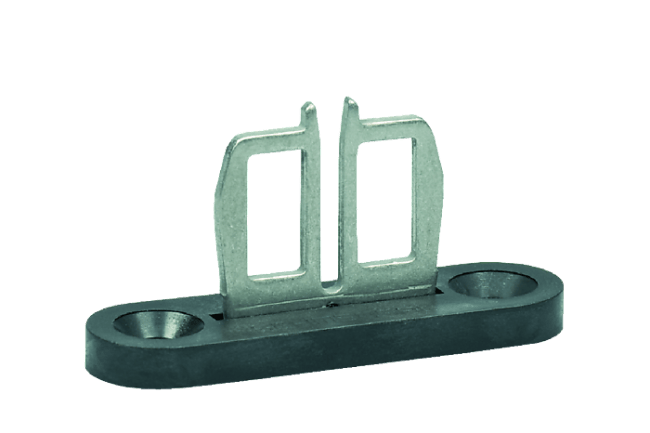

Actuator AZ 15/16-B1-S
Produktnummer: 1172495
Lagerbeholdning:
ekskl. mva.
Accessories for Ex AZ 16 (01.08.0187)
Accessories for Ex AZ 16 (01.08.0187)
AZ 15/16-B1
Accessories for Ex AZ 16
Material number: 1172495
(Material number old: 01.08.0187)
- Actuating radius on hinged guards a = 150 mm and b = 150 mm
- Axial misalignment x = 5 mm
The axis of the hinge should be x mm above the top edge
of the safety switch and in the same plane.
a = Actuating radius to the plane of the actuator
b = Actuating radius in line with the plane of the actuator
x = Axial misalignment
Attention! x must be referred to the surface of the enclosure and not to the inserted actuator!
| Oprinnelses land | Tyskland |
| HS kode | 85389099 |
