Flexible actuator STM 295-B6
Produktnummer: 1435030
Lagerbeholdning:
ekskl. mva.
Accessories for STM 295 / Ex STM 295
Accessories for STM 295 / Ex STM 295

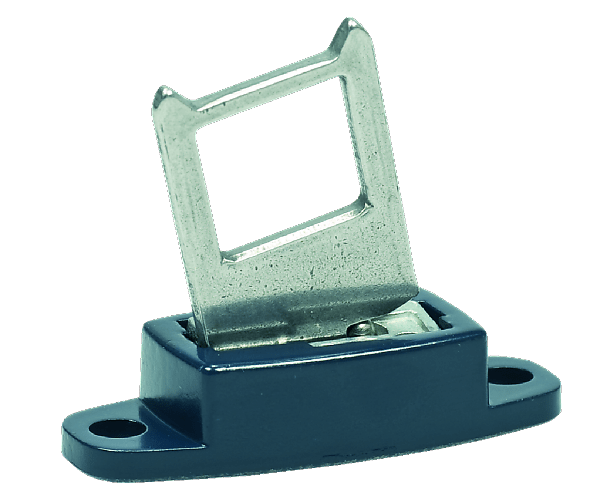

FLEXIBLE ACTUATOR STM 295-B6
Accessories for STM 295 / Ex STM 295
Material number: 1435030
- Especially suitable for hinged guards
- Actuating radius adjustable, min. 100 mm, using a hexagonal key wrench 2.5 mm A/F (a or b)
- Actuating radius on hinged guards a = 100 mm and b = 100 mm
- Axial misalignment x = 13 mm
Note
- 3 slot sealing plugs are included in delivery
| Oprinnelses land | Tyskland |
| HS kode | 85389099 |
