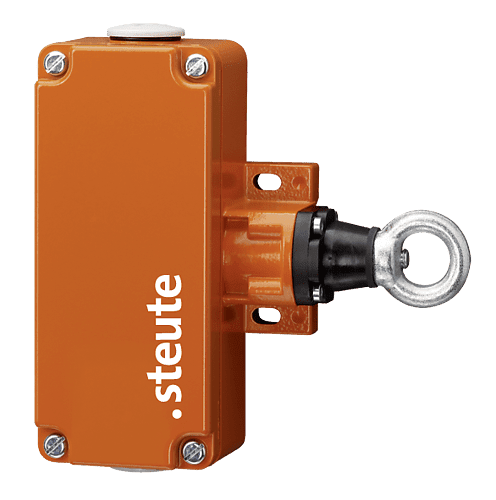

Snortrekkbryter (75141905)
Steute ZS 75 2Ö/2S / 295-390 N
Pull-wire switch
Material number: 1164919
(Material number old: 75441002)
- Metal enclosure
- 4 contacts
- Wire length up to 130 m
- Adjustable spring force: 295-390 N
- Wire pull and breakage detection
- Without mechanical latching
Note
- At 5 m distance intermediate wire supports are required. One wire thimble is provided.
Switching diagram
Contact diagram
Oprinnelses land | Tyskland |
Tilbehørsprodukter
PULL-WIRE STAINLESS STEEL Ø 5 MM per meter
Tilbehør til nødstopp snortrekkbrytere(01.10.0059)
1033297
EYE BOLT BM8 X 70 WITH NUT. STAINLESS STEEL
Tilbehør til nødstopp snortrekkbrytere (04.00.7166)
1189687
COMPENSATION SPRING ZS 73/75-400N
Tilbehør til nødstopp snortrekkbrytere ZS 73/75 (04.00.7157)
1187934
